The Velo Orange Rear Cassette Hub is specially designed for touring, randonneuring, and commuting in all weather conditions. The hub's high flanges allow room for large, sealed cartridge bearings so your hubs will be spinning happily for a long time.
The hub includes replaceable endcaps to convert between 130mm and 135mm spacing. The drive side endcaps are identical, while the non-drive side endcap for the 135mm set is 5mm longer, meaning that if you switch from one width to another, you'll likely have to have your wheel re-dished, slightly.
The freehub features a tool-free disassembly for maintenance or roadside driveside spoke replacement.
Available in Polished Silver and Smooth Noir finishes.
- Frame Spacing: 130mm or 135mm (replaceable endcaps included)
- Spoke Flange Diameter: 58mm
- Left Center-to-Flange (130mm spacing): 37.1mm
- Left Center-to-Flange (135mm spacing): 34.4mm
- Right Center-to-Flange (130mm spacing): 14.95mm
- Right Center-to-Flange (135mm spacing): 17.45mm
- Weight: 290g w/ Shimano FHB
- Drilling: 32 or 36 hole
- Freehub Body (let us know in your order's comments which you'd prefer): 11 speed compatible Shimano, Campagnolo or Sram XDR.
- Quick-release skewer not included.
Here's a video discussing disassembly and reassembly of the rear hub for maintenance. Spoiler, it's super easy.
Free Shipping for Retail customers with subtotals over $150: Velo Orange offers free shipping to the lower 48 States for retail orders with a subtotal of at least $150. Use the coupon code 150SHIP when you check out to get the deal.
Free Shipping for Wholesale customers with subtotals over $400: Velo Orange offers free shipping for wholesale orders to the lower 48 States with a subtotal of at least $400. No coupon code required for this deal.
Oversize international shipping: Large products including (but not limited to) frames, fork, fenders, handlebars, racks, and rims may incur oversize shipping charges. We will notify you of additional charges.
For additional info, please visit our FAQ page or contact us.
I'm not concerned with shaving every gram, or eliminating every source of friction, etc. I don't use ceramic bearings or fancy headsets. I'm not that kind of person, so please don't think the following is hyperbole.
The freehub on this hub is really, really stiff. When I coast downhill I can feel and see the chain go slack from the resistance in the free hub. For years I rode on midgrade shimano deore hubs, with full labyrinth seals. I have had 2 or 3 of them, and never experienced resistance anything like this, even though they are super overkill sealed. So this is not just a case of me not knowing how weather-sealed hubs feel.
I've ridden this hub about 500 miles now, and I almost feel like they have gotten worse over time, rather than wearing in as I would expect.
As a side note, when I finally opened it up this morning, I saw that the freehub was full of white lithium grease in the pawls. I had noticed this when I first bought the hub, and I wiped as much of it off as I could, but it was seeping residual grease from under the pawls. I spayed it out completely and put in dumonde freehub oil, but it's still just so stiff! It's probably just my imagination, but I swear I can feel the drag when I'm riding...
Anyways, I actually do like these hubs, they certainly fill a niche. But I may not spring for these again, unless the seals finally loosen up in my next few hundred miles.

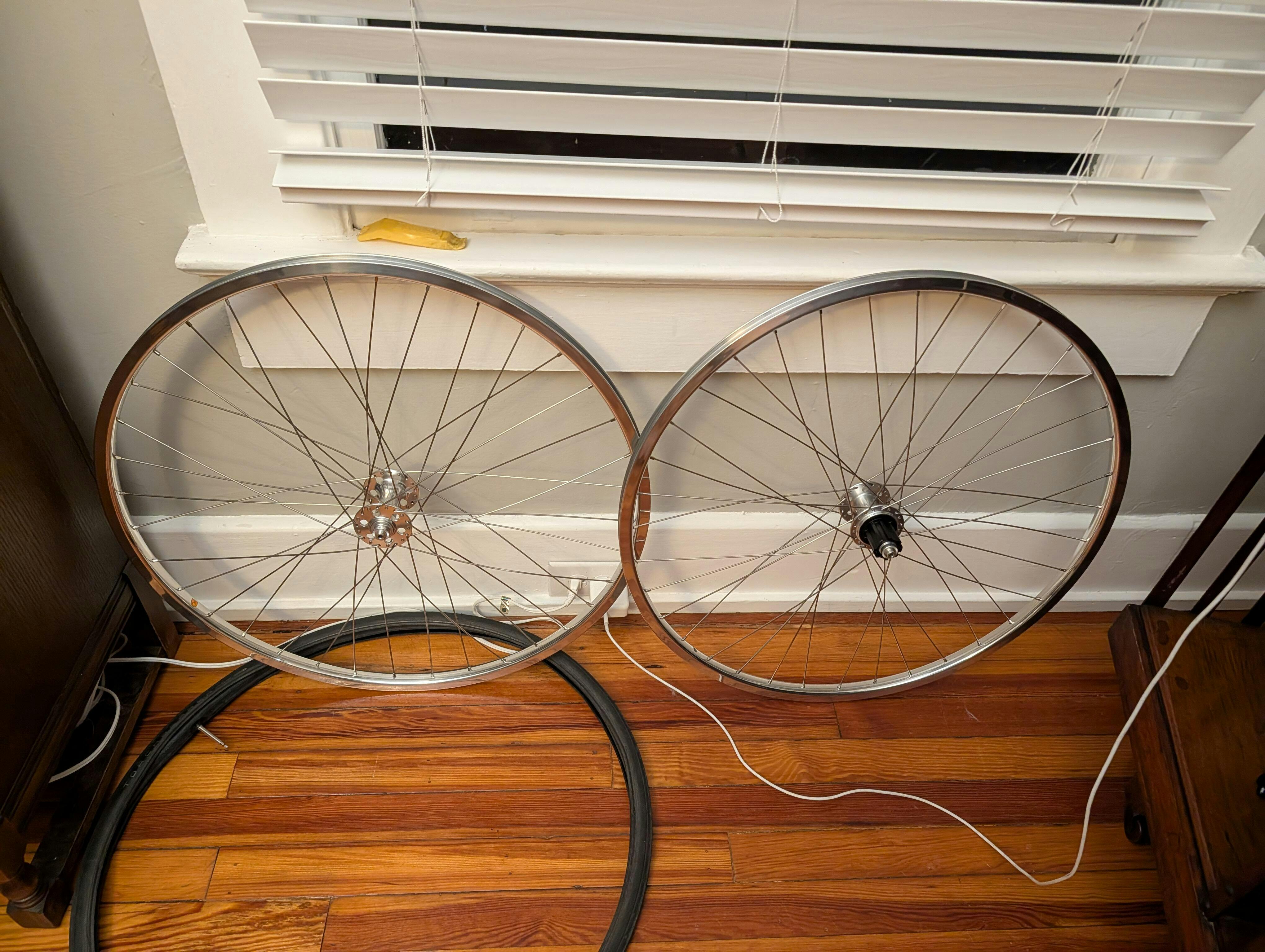

fitted to 650b rim looks fantastic
Not used yet. Customer service has been tops. Little concerned about alloy freehub but bought a whole 2nd hub so have back up.
I just bought this Hub and I really like it. However, it would be better if you provide a delivery service other than FedEx. It's because FedEx services in my country (Indonesia) is not good, customer call center is out of reached and very difficult to contact, this worries me a lot. Hopefully this can be a consideration by the VeloOrange team for us, especially in Indonesia. Thank you.
Overall, this hub is great, and a nice upgrade from the previous version. I especially like that 130mm and 135mm endcaps are included. I was however very disappointed at the switch to an aluminum freehub body.
