Polyvalent - Diamond

Update: Another run is already in production and slated for arrival around September.

-----------------

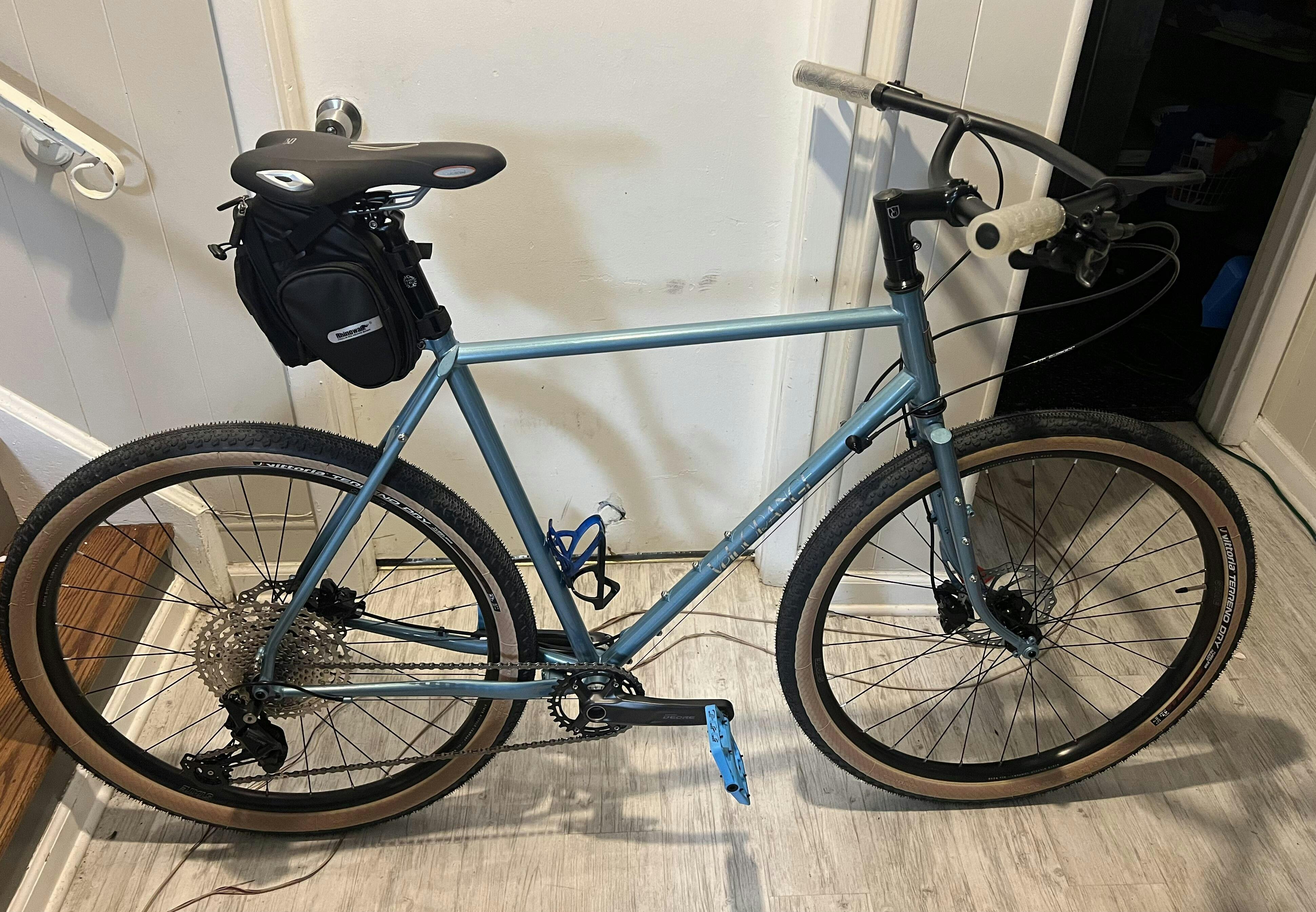

The Polyvalent is Velo Orange’s “do-it-all” frameset. It is the ideal platform to build a sturdy tourer, practical commuter, comfortable all-day randonneur, or a rugged gravel bike.

Tire clearance is generous. With fenders: 650b x 48 or 26 x 2.3” (smooth). Forgoing fenders, the Polyvalent can gobble up 650b x 2.1” or 26x2.3 (knobby).

There are star reinforcements on nearly every braze-on on the frame and fork. The rear brake routing is internal and features super easy installation via a brazed in tube - no more fishing for the housing.

The rear end of the bike features dedicated rack and fender mounts.

The fork has an elegant French-style bend that features braze-ons for a multitude of mounting options including: Rando-style front racks, side-mounted cargo cages, and low-rider pannier racks.

The seatstays wrap elegantly around the integrated seat collar and nearly meet at a point.

Of course, it wouldn't be a Velo Orange frame without proper fender mounts that face the tire to create a perfect fender installation every time.

• Frameset material: 4130 double butted chromoly steel
• Fork: 1 1/8" threadless, 4130 chromoly steel with elegant bend
• Wheel Size: 650B or 26"
• Tire Clearance: 650B x 48mm, 26 x 2.3" (either with fenders) / 650b x 2.1 or 26 x 2.3 knobby (without fenders)
• Rear Spacing: 12 x 142mm, thru-axle with replaceable hanger (included)
• Fork Spacing: 12 x 100mm, thru-axle (included)
• BB: English threaded 68mm
• Brakes: IS mount disc, 160mm or 180mm rotors suggested
• Seatpost: 27.2mm
• Front Derailleur Size: 28.6mm
• Water bottle mounts: Triple on top of downtube, one set on the seattube, one set on underside of downtube
• Fender bosses: seat stay bridge, chainstay bridge, under fork crown
• Frame Eyelets: Double eyelets on rear dropouts for racks and fenders. Internal eyelets on seat stays
• Fork Eyelets: Double eyelets on fork dropouts for racks and fenders. Triple thru-bosses on the blades for lowrider racks. Hourglass braze-on for Randonneur, Flat Pack Rack, or Campeur Racks.
• Rear Brake Routing: Easy internal routing for rear brake cable housing/hydraulic tubing
• Paint: Sage Metallic

and the geometry:
